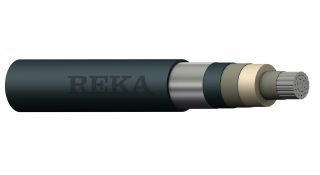

AHXAMK-WP 12/20 (24) kV 3-core
Download product group datasheet
Medium-voltage cable for fixed installations outdoors. May be buried directly in soil, also by ploughing. Cable is longitudinally and radially watertight and therefore it is suitable where wet soil and / or fresh water permanently occurs. Installations must be in accordance with national regulations and rules of installations. The cable is halogen-free, but without fire protection. The cable is not CPR-classified.
| Standards | HD 620 10 F, SFS 5636 |
|---|---|
| Product Environmental Profile (PEP) | PEP NXNS-00437-V01.01-EN.pdf |
| Conductor | Watertight, circular, stranded aluminium, EN/IEC 60228 class 2 |
| Conductor screen | Semiconducting cross-linked polyethylene XLPE |
| Insulation | Cross-linked polyethylene XLPE |
| Insulation screen | Semiconducting cross-linked polyethylene XLPE |
| Core Identification (all color combinations in the cable family) | White phase numbering: L1, L2, L3 |
| Cable lay up | Three sheathed cores are laid up together |
| Inner covering | Semiconducting waterswellable tape against longitudinal water penetration |
| Metal screen | Polyethylene laminated aluminium foil, which acts also as a radial water barrier |
| Oversheath | PE-plastic PELLD |
| Colour of the oversheath | Black |
3x50
Electric number
Size
Packaging
Voltage
3x50
Nominal diameter of complete cable mm
59
Nominal weight of cable kg/km
1939
Conductor material
Aluminium
Nominal diameter of conductor mm
8
Nominal cross-sectional area of conductor mm2
50
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
19.3
Number of wires
3
Min. bending radius
During handling and installation, phase conductor cm
41
During handling and installation, cable cm
70
In final installation, phase conductor cm
28
In final installation, cable cm
49
During handling and installation, phase conductor m
0.41
During handling and installation, cable m
0.7
In final installation, phase conductor m
0.28
In final installation, cable m
0.49
Max. pulling force
Pulling-eye kN
4.5
Pulling-stocking kN
2.3
Resistance 20 °C Ω/km
0,641
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6410006224005
Reka code
1187052
3x70
Electric number
Size
Packaging
Voltage
3x70
Nominal diameter of complete cable mm
62
Nominal weight of cable kg/km
2226
Conductor material
Aluminium
Nominal diameter of conductor mm
9.5
Nominal cross-sectional area of conductor mm2
70
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
20.7
Number of wires
3
Min. bending radius
During handling and installation, phase conductor cm
44
During handling and installation, cable cm
74
In final installation, phase conductor cm
30
In final installation, cable cm
52
During handling and installation, phase conductor m
0.44
During handling and installation, cable m
0.74
In final installation, phase conductor m
0.3
In final installation, cable m
0.52
Max. pulling force
Pulling-eye kN
6.3
Pulling-stocking kN
3.2
Resistance 20 °C Ω/km
0,443
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6410006224012
Reka code
1187103
3x95
Electric number
Size
Packaging
Voltage
3x95
Nominal diameter of complete cable mm
66
Nominal weight of cable kg/km
2598
Conductor material
Aluminium
Nominal diameter of conductor mm
11.1
Nominal cross-sectional area of conductor mm2
95
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
22.4
Number of wires
3
Min. bending radius
During handling and installation, phase conductor cm
47
During handling and installation, cable cm
79
In final installation, phase conductor cm
33
In final installation, cable cm
55
During handling and installation, phase conductor m
0.47
During handling and installation, cable m
0.79
In final installation, phase conductor m
0.33
In final installation, cable m
0.55
Max. pulling force
Pulling-eye kN
8.6
Pulling-stocking kN
4.3
Resistance 20 °C Ω/km
0,320
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6410006224036
Reka code
1187104
3x150
Electric number
Size
Packaging
Voltage
3x150
Nominal diameter of complete cable mm
71
Nominal weight of cable kg/km
3268
Conductor material
Aluminium
Nominal diameter of conductor mm
13.9
Nominal cross-sectional area of conductor mm2
150
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
25.1
Number of wires
3
Min. bending radius
During handling and installation, phase conductor cm
50
During handling and installation, cable cm
86
In final installation, phase conductor cm
35
In final installation, cable cm
60
During handling and installation, phase conductor m
0.5
During handling and installation, cable m
0.86
In final installation, phase conductor m
0.35
In final installation, cable m
0.6
Max. pulling force
Pulling-eye kN
13.5
Pulling-stocking kN
6.8
Resistance 20 °C Ω/km
0,206
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6410006224050
Reka code
1187106
3x185
Electric number
Size
Packaging
Voltage
3x185
Nominal diameter of complete cable mm
76
Nominal weight of cable kg/km
3784
Conductor material
Aluminium
Nominal diameter of conductor mm
15.6
Nominal cross-sectional area of conductor mm2
185
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
27
Number of wires
3
Min. bending radius
During handling and installation, phase conductor cm
53
During handling and installation, cable cm
91
In final installation, phase conductor cm
37
In final installation, cable cm
64
During handling and installation, phase conductor m
0.53
During handling and installation, cable m
0.91
In final installation, phase conductor m
0.37
In final installation, cable m
0.64
Max. pulling force
Pulling-eye kN
16.7
Pulling-stocking kN
8.3
Resistance 20 °C Ω/km
0,164
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6410006224074
Reka code
1187107
3x240
Electric number
Size
Packaging
Voltage
3x240
Nominal diameter of complete cable mm
82
Nominal weight of cable kg/km
4563
Conductor material
Aluminium
Nominal diameter of conductor mm
17.8
Nominal cross-sectional area of conductor mm2
240
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
29.2
Number of wires
3
Min. bending radius
During handling and installation, phase conductor cm
57
During handling and installation, cable cm
98
In final installation, phase conductor cm
40
In final installation, cable cm
69
During handling and installation, phase conductor m
0.57
During handling and installation, cable m
0.98
In final installation, phase conductor m
0.4
In final installation, cable m
0.69
Max. pulling force
Pulling-eye kN
20
Pulling-stocking kN
8.5
Resistance 20 °C Ω/km
0,125
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6410006224098
Reka code
1187108
3x300
Electric number
Size
Packaging
Voltage
3x300
Nominal diameter of complete cable mm
86
Nominal weight of cable kg/km
5301
Conductor material
Aluminium
Nominal diameter of conductor mm
19.8
Nominal cross-sectional area of conductor mm2
300
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
31
Number of wires
3
Min. bending radius
During handling and installation, phase conductor cm
60
During handling and installation, cable cm
103
In final installation, phase conductor cm
42
In final installation, cable cm
72
During handling and installation, phase conductor m
0.6
During handling and installation, cable m
1.03
In final installation, phase conductor m
0.42
In final installation, cable m
0.72
Max. pulling force
Pulling-eye kN
20
Pulling-stocking kN
8.5
Resistance 20 °C Ω/km
0,100
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6438176300077
Reka code
1187109
