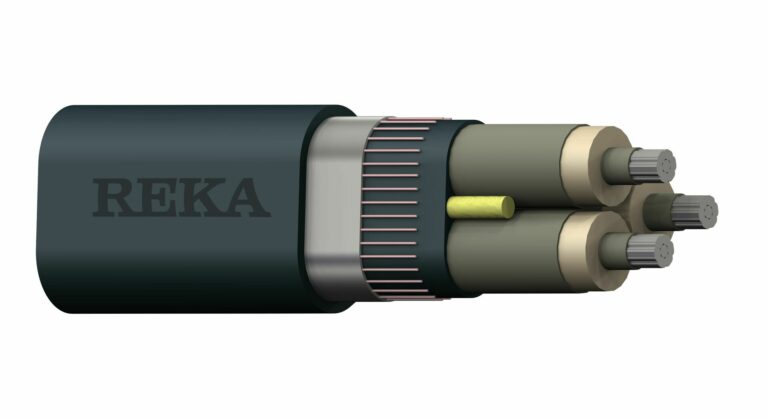

AXLJ-F TT 12/20 (24) kV 3-core
Download product group datasheet
Medium-voltage cable for fixed installations outdoors. May be buried directly in soil, also by ploughing. Cable is longitudinally and radially watertight and therefore it is suitable where wet soil and / or fresh water permanently occurs. Installations must be in accordance with national regulations and rules of installations. The cable is halogen-free, but without fire protection. The cable is not CPR-classified.
| Standards | HD 620 10 M, SS 424 14 16 |
|---|---|
| Conductor | Watertight, circular, stranded aluminium, EN/IEC 60228 class 2 |
| Conductor screen | Semiconducting cross-linked polyethylene XLPE |
| Insulation | Cross-linked polyethylene XLPE |
| Insulation screen | Semiconducting cross-linked polyethylene XLPE |
| Inner covering | Semiconducting waterswellable tape against longitudinal water penetration |
| Metal screen | Layer of helically wound copper wires with a counter helix copper tape |
| Oversheath | PE-plastic PELLD |
| Colour of the oversheath | Black |
3x50/16
Electric number
Size
Packaging
Voltage
3x50/16
Nominal diameter of complete cable mm
53
Nominal weight of cable kg/km
1783
Conductor material
Aluminium
Nominal diameter of conductor mm
8
Nominal cross-sectional area of conductor mm2
50
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
19.2
Number of wires
3
Nominal size of metal screen mm2
16
Min. bending radius
During handling and installation, phase conductor cm
30
During handling and installation, cable cm
64
In final installation, phase conductor cm
21
In final installation, cable cm
45
During handling and installation, cable m
0.64
In final installation, cable m
0.45
Max. pulling force
Pulling-eye kN
7.5
Pulling-stocking kN
2.3
Resistance 20 °C Ω/km
0,641
Maximum d.c. resistance at 20 °C, metal screen Ω/km
1,2
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6438176215746
Reka code
1187913
3x95/16
Electric number
Size
Packaging
Voltage
3x95/16
Nominal diameter of complete cable mm
60
Nominal weight of cable kg/km
2429
Conductor material
Aluminium
Nominal diameter of conductor mm
11.1
Nominal cross-sectional area of conductor mm2
95
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
22.3
Number of wires
3
Nominal size of metal screen mm2
16
Min. bending radius
During handling and installation, phase conductor cm
35
During handling and installation, cable cm
72
In final installation, phase conductor cm
24
In final installation, cable cm
50
During handling and installation, cable m
0.72
In final installation, cable m
0.5
Max. pulling force
Pulling-eye kN
14.3
Pulling-stocking kN
4.3
Resistance 20 °C Ω/km
0,320
Maximum d.c. resistance at 20 °C, metal screen Ω/km
1,2
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6438176215760
Reka code
1187915
3x95/25
Electric number
Size
Packaging
Voltage
3x95/25
Nominal diameter of complete cable mm
60
Nominal weight of cable kg/km
2481
Conductor material
Aluminium
Nominal diameter of conductor mm
11.1
Nominal cross-sectional area of conductor mm2
95
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
22.3
Number of wires
3
Nominal size of metal screen mm2
25
Min. bending radius
During handling and installation, phase conductor cm
35
During handling and installation, cable cm
72
In final installation, phase conductor cm
24
In final installation, cable cm
51
During handling and installation, cable m
0.72
In final installation, cable m
0.51
Max. pulling force
Pulling-eye kN
14.3
Pulling-stocking kN
4.3
Resistance 20 °C Ω/km
0,320
Maximum d.c. resistance at 20 °C, metal screen Ω/km
0,8
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6438176216200
Reka code
1187905
3x120/16
Electric number
Size
Packaging
Voltage
3x120/16
Nominal diameter of complete cable mm
63
Nominal weight of cable kg/km
2788
Conductor material
Aluminium
Nominal diameter of conductor mm
12.6
Nominal cross-sectional area of conductor mm2
120
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
23.8
Number of wires
3
Nominal size of metal screen mm2
16
Min. bending radius
During handling and installation, phase conductor cm
37
During handling and installation, cable cm
76
In final installation, phase conductor cm
26
In final installation, cable cm
53
During handling and installation, cable m
0.76
In final installation, cable m
0.53
Max. pulling force
Pulling-eye kN
18
Pulling-stocking kN
5.4
Resistance 20 °C Ω/km
0,253
Maximum d.c. resistance at 20 °C, metal screen Ω/km
1,2
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6438176215784
Reka code
1187916
3x150/25
Electric number
Size
Packaging
Voltage
3x150/25
Nominal diameter of complete cable mm
66
Nominal weight of cable kg/km
3176
Conductor material
Aluminium
Nominal diameter of conductor mm
13.9
Nominal cross-sectional area of conductor mm2
150
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
25.1
Number of wires
3
Nominal size of metal screen mm2
25
Min. bending radius
During handling and installation, phase conductor cm
39
During handling and installation, cable cm
80
In final installation, phase conductor cm
27
In final installation, cable cm
56
During handling and installation, cable m
0.8
In final installation, cable m
0.56
Max. pulling force
Pulling-eye kN
20
Pulling-stocking kN
6.8
Resistance 20 °C Ω/km
0,206
Maximum d.c. resistance at 20 °C, metal screen Ω/km
0,8
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6438176215807
Reka code
1187917
3x240/25
Electric number
Size
Packaging
Voltage
3x240/25
Nominal diameter of complete cable mm
76
Nominal weight of cable kg/km
4367
Conductor material
Aluminium
Nominal diameter of conductor mm
17.8
Nominal cross-sectional area of conductor mm2
240
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
29.2
Number of wires
3
Nominal size of metal screen mm2
25
Min. bending radius
During handling and installation, phase conductor cm
45
During handling and installation, cable cm
91
In final installation, phase conductor cm
32
In final installation, cable cm
64
During handling and installation, cable m
0.91
In final installation, cable m
0.64
Max. pulling force
Pulling-eye kN
20
Pulling-stocking kN
8.5
Resistance 20 °C Ω/km
0,125
Maximum d.c. resistance at 20 °C, metal screen Ω/km
0,8
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6438176215845
Reka code
1187919
3x240/35
Electric number
Size
Packaging
Voltage
3x240/35
Nominal diameter of complete cable mm
76
Nominal weight of cable kg/km
4447
Conductor material
Aluminium
Nominal diameter of conductor mm
17.8
Nominal cross-sectional area of conductor mm2
240
Nominal thickness of insulation mm
5.5
Nominal diameter over the insulation without insulation screen mm
29.2
Number of wires
3
Nominal size of metal screen mm2
35
Min. bending radius
During handling and installation, phase conductor cm
45
During handling and installation, cable cm
91
In final installation, phase conductor cm
32
In final installation, cable cm
64
During handling and installation, cable m
0.92
In final installation, cable m
0.64
Max. pulling force
Pulling-eye kN
20
Pulling-stocking kN
8.5
Resistance 20 °C Ω/km
0,125
Maximum d.c. resistance at 20 °C, metal screen Ω/km
0,6
Minimum cable temperature during transport °C
-40
Minimum cable temperature during handling and installation °C
-20
Minimum cable temperature during operation °C
-50
Maximum conductor temperature in normal operation °C
90
Maximum conductor temperature during short circuit (not exceeding 5 sec.) °C
250
EAN code
6438176216217
Reka code
1187909
